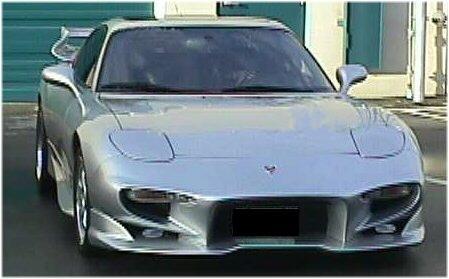

RPM Motorsports' attempt at a rotary engine.  It turned out to be quite a success when we ran the Mazda at 11.6 [email protected] mph (18 psi boost).  We think the fastest Mazda rotary in the city.  The modification process took a total of about 7 months and RPM staff members do not regret one minute of it.  Future plans for the TS- is more towards the interior of the car rather than engine work.  Plans look ahead to 2 Recaro seats, Momo steering wheel, etc.



Profile:

Year: 1996
Make:  Mazda
Model:  RX-7 Twin Turbo
Engine Type: 13B 2-Rotor Wankel Rotary, Multi-Port Electrionic Fuel Injection, Engine Capacity: 1308cc, water cooled, front mount High Capacity Intercooler
Transmission: 5 sp. manual
Turbo: TD06SH 20G Sequential Twin Turbo chargers
Performance:
Horsepower (SAE net): 432bhp@6,500 RPM / 372 hp at the wheel (19 psi boost)

Torque (SAE net lb-ft): 289@5,200 RPM (14 psi boost)
Max. boost: 19 psi (haven't gone higher)
0-60 mph: 3.65 seconds
1/4 mile: 11.6 [email protected] mph
Top Speed: 182 mph / 293 km/h


Performance Mods (Click on Text for details):
TD06SH 20G Sequential Twin Turbochargers
Pulley system
        Pop-Off Valve
Dual Friction Clutch
Sequential Blow off Valve
Wastegate
Power Extreme Exhaust
Airinx Filtercharger
ECU upgrade
Front Mount High Capacity Intercooler
Strut Bars
AVC-R Electronic Boost Controller
Super AFC Air/Fuel Ratio Controller
ITC (ignition timing control)
Brake callipers, rotors, discs & pads
Track Pro Progressive Springs
Turbo Timer

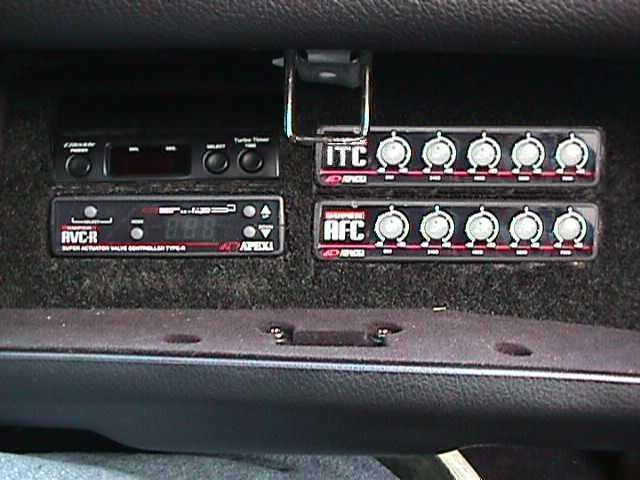

All electronics hidden in the glove compartment: boost, ignition, fuel, turbo timer and all!


Effects Mods:
Metallic Silver paint with clearcoat
Combat adjustable spoiler
Combat kit (front bumper, side aprons and rear skirts)
AV3 17" wheels, 235/45/R17 Yokohama AVS tires (front)
AV3 18" wheels, 285/40/R18 Yokohama AVS tires (rear)
